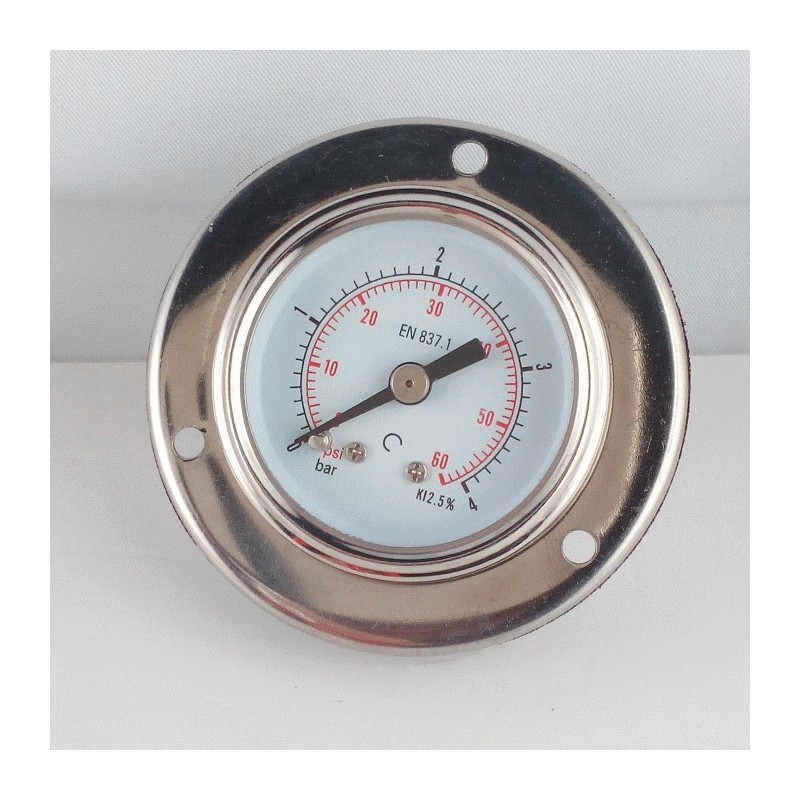

Stainless steel pressure gauge 4 Bar diameter dn 40mm flange
40FA4.35
New
Dimensions: B=25mm D=40,5mm D1=45mm H=44mm CH=11
Shipping Policies
Goods travel on behalf of and at the risk of the purchaser. Any damage or tampering occurring durin
Returns Policies
The customer, with reference to the Legislative Decree of 22 May 1999, n. 185, you can exercise the
€53.00
VAT included
Completely stainless steel pressure gauge diameter 40mm range 0/4 Bar with 3 holes flange for panel mounting.
Supplied embty but also available glycerine filled (see options)
Suitable for corrosive process gas or liquid. With liquid filled case for applications with high dynamic pressure pulsations or vibrations. Chemical/petrol-chemical, power stations, mining, on- and offshore, environmental technology, mechanical engineering and plant construction.
All stainless steel pressure gauge made according UNI EN 837.1 norms - case aisi 304 dial 40mm. - Stainless steel aisi 316 movement and pivot - BACK conical connection 1/8 bspt (ISO 7/1) on dial 40 - Aluminium dial White background Black - BAR scale and Red PSI - Accuracy 2,5% - Aluminium index
Working Temperature: Room-Temp. -30 +65° C (-22 +149° F) - With Glycerine -10 +65° C (+14 +149° F)
Process -40 + 180° C (-40 +356° F) - With Glycerine 0 + 75°C (+32 +167° F)
Working Pressure: Steady 75% - Variable 60%
Overpressure not admitted
If you wish a customized offer for large quantities or dials with your logo Contact us
