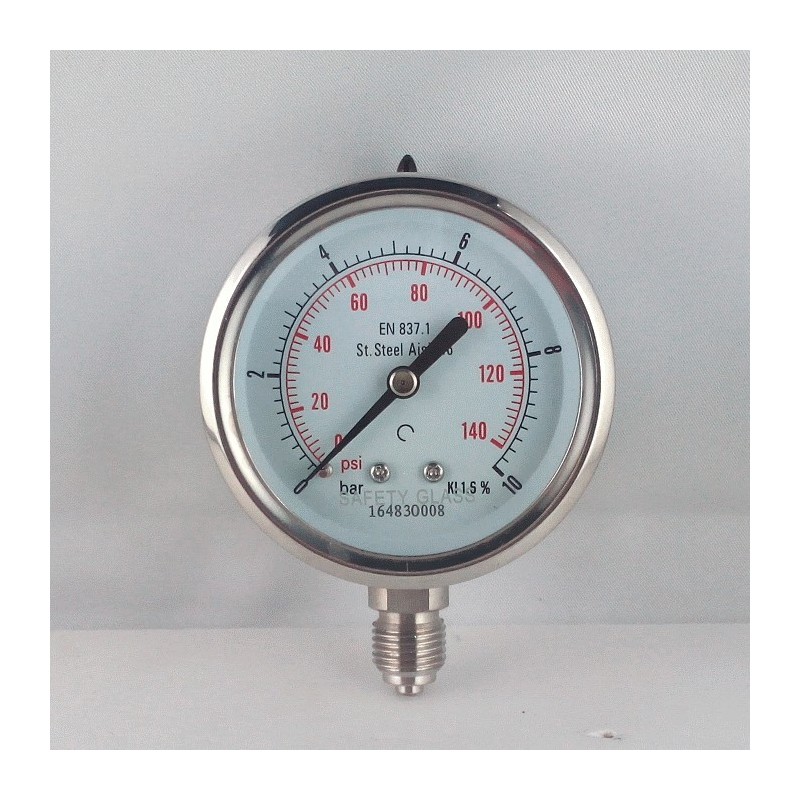

Stainless steel pressure gauge 10 Bar diameter dn 63mm bottom
63RB10.35
New
Dimensions: A=10mm B=31mm D=62 D1=66mm H=54mm CH=14mm
help_outlineAsk about product
Grade
Read user reviews (5)
Shipping Policies
Goods travel on behalf of and at the risk of the purchaser. Any damage or tampering occurring durin
Returns Policies
The customer, with reference to the Legislative Decree of 22 May 1999, n. 185, you can exercise the
€45.00
Completely stainless steel pressure gauge diameter 63mm range 0/10 Bar available also with glycerine (see optins). Suitable for corrosive process gas or liquid. With liquid filled case for applications with high dynamic pressure pulsations or vibrations. Chemical/petrol-chemical, power stations, mining, on- and offshore, environmental technology, mechanical engineering and plant construction.
All stainless steel pressure gauge made according UNI EN 837.1 norms - case aisi 304 dial 63mm. - Stainless steel aisi 316 movement and pivot - BOTTOM cilindrical connection 1/4 bspp (ISO 7/1) - Aluminium dial White background Black - BAR scale and Red PSI - Accuracy 1,6% - Aluminium index
Working Temperature: Room-Temp. -30 +65° C (-22 +149° F) - With Glycerine -10 +65° C (+14 +149° F)
Process -40 + 180° C (-40 +356° F) - With Glycerine 0 + 75°C (+32 +167° F)
Working Pressure: Steady 75% - Variable 60%
Overpressure not admitted
If you wish a customized offer for large quantities or dials with your logo Contact us
63RB10.35
New
Comments (5)
Grade
No customer reviews for the moment.
Dimensions: A=10mm B=31mm D=62 D1=66mm H=54mm CH=14mm
