|Connection position||Bottom Vertical|

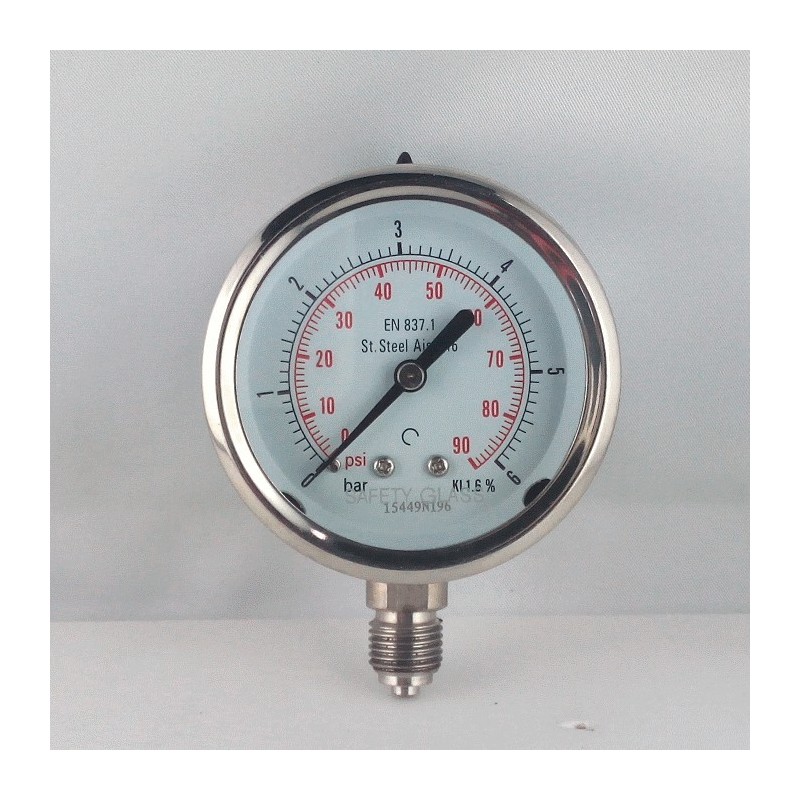

Completely stainless steel pressure gauge diameter 63mm range 0/6 Baro available also with glycerine (see optins). Suitable for corrosive process gas or liquid. With liquid filled case for applications with high dynamic pressure pulsations or vibrations. Chemical/petrol-chemical, power stations, mining, on- and offshore, environmental technology, mechanical engineering and plant construction.
All stainless steel pressure gauge made according UNI EN 837.1 norms - case aisi 304 dial 63mm. - Stainless steel aisi 316 movement and pivot - BOTTOM cilindrical connection 1/4 bspp (ISO 7/1) - Aluminium dial White background Black - BAR scale and Red PSI - Accuracy 1,6% - Aluminium index
Working Temperature: Room-Temp. -30 +65° C (-22 +149° F) - With Glycerine -10 +65° C (+14 +149° F)
Process -40 + 180° C (-40 +356° F) - With Glycerine 0 + 75°C (+32 +167° F)
Working Pressure: Steady 75% - Variable 60%
Overpressure not admitted
Dimensions : A=10mm B=31mm D=62 D1=66mm H=54mm
If you wish a customized offer for large quantities or dials with your logo Contact us
