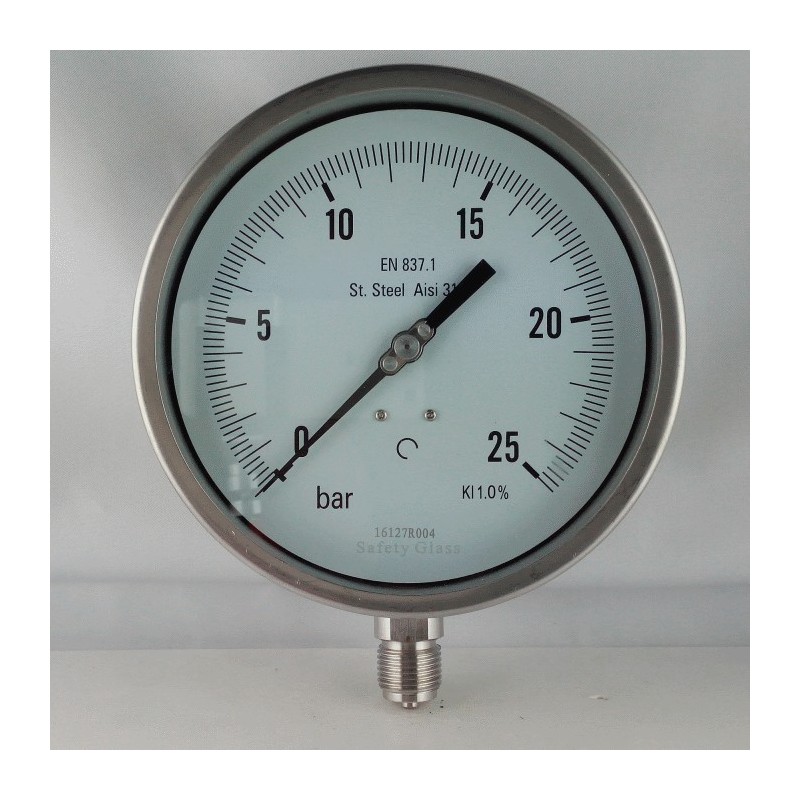

Stainless steel pressure gauge 25 Bar dn 150mm bottom or back flange
150RB25.30
New
Dimensions: A=15mm B=49mm D=149mm D1=160mm H=112mm
Shipping Policies
Goods travel on behalf of and at the risk of the purchaser. Any damage or tampering occurring durin
Returns Policies
The customer, with reference to the Legislative Decree of 22 May 1999, n. 185, you can exercise the
€105.00
VAT included
Stainless steel pressure gauge dimeter 150mm range 0/25 Bar also available glycerine filled and back flange(see options)4
ALL STAINLESS STEEL pressure gauge made according UNI EN 837.1 norms - aisi 304 case IP67 - blow out back cap. - SAFETY GLASS windows - Stainless steel aisi 316 movement and pivot - BOTTOM cilindrical (ISO 228) connection - Aluminium dial White background - Black BAR scale - Accuracy 1,0% - Micrometric adjustable aluminium index
Working Temperature: Room-Temp. -30 +65° C (-22 +149° F) - With Glycerine -10 +65° C (+14 +149° F)
Process -40 + 180° C (-40 +356° F) - With Glycerine 0 + 75°C (+32 +167° F)
Working Pressure: Steady 75% - Variable 60%
Overpressure 25% until 60 bar (870 psi) 15% over
If you wish a customized offer for large quantities or dials with your logo Contact us
150RB25.30
New
Comments (0)
No customer reviews for the moment.
Dimensions: A=15mm B=49mm D=149mm D1=160mm H=112mm
