Stainless steel pressure gauge 4 Bar dn 150mm bottom or back flange

150RA4.30
New

Dimensions: A=15mm B=49mm D=149mm D1=160mm H=112mm

help_outlineAsk about product
Stainless steel pressure gauge 4 Bar dn 150mm bottom or back flange

Stainless steel pressure gauge 4 Bar dn 150mm bottom or back flange



  Politiche per le spedizioni

(modificale nel modulo Rassicurazioni cliente)

  Politiche per i resi

(modificale nel modulo Rassicurazioni cliente)

€99.00
VAT included
Certification: NO
Back flange: NO
Seal: NO
Glycerine filling: NO
Degreasing for oxigen: NO
Quantity

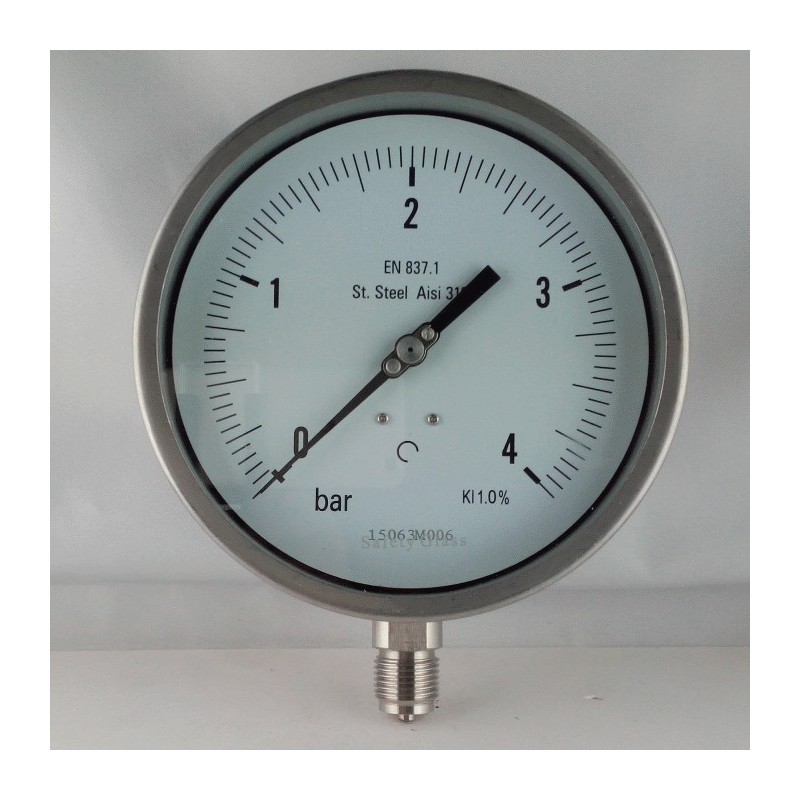

Stainless steel pressure gauge dimeter 150mm range 0/4 Bar also available glycerine filled and back flange(see options)
ALL STAINLESS STEEL pressure gauge made according UNI EN 837.1 norms - aisi 304 case IP67 - blow out back cap. - SAFETY GLASS windows - Stainless steel aisi 316 movement and pivot - BOTTOM cilindrical (ISO 228) connection - Aluminium dial White background - Black BAR scale - Accuracy 1,0% - Micrometric adjustable aluminium index

Working Temperature: Room-Temp. -30 +65° C (-22 +149° F) - With Glycerine -10 +65° C (+14 +149° F)
Process -40 + 180° C (-40 +356° F) - With Glycerine 0 + 75°C (+32 +167° F)
Working Pressure: Steady 75% - Variable 60%

Overpressure 25% until 60 bar (870 psi) 15% over


If you wish a customized offer for large quantities or dials with your logo Contact us

150RA4.30
