Glycerine filled pressure gauge for washer 400 Bar dn 40mm back
40PC400.MGE
New
Dimensions: B=25mm D=40,5mm D1=44mm H=43mm
Shipping Policies
Goods travel on behalf of and at the risk of the purchaser. Any damage or tampering occurring durin
Returns Policies
The customer, with reference to the Legislative Decree of 22 May 1999, n. 185, you can exercise the
€19.00
No tax

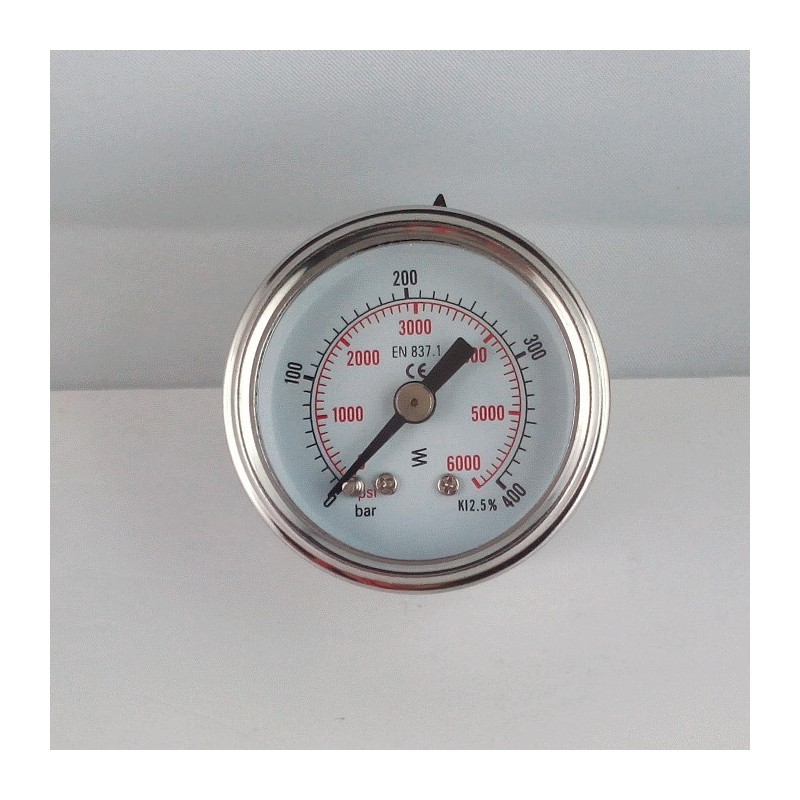

Glycerine filled pressure gauge diameter 40mm range 0/400 Bar
Suitable for all process gaseous and liquid that don't attack copper alloy parts. Intended for adverse service conditions where pulsating or vibration exists. Hydraulics, Compressors
Pressure gauge made according UNI EN 837.1 norms - Stainless steel case aisi 304 dial 40mm. - BRASS movement and pivot - BACK conical connection 1/8 bspt (ISO 7/1) - Aluminium dial White background - Black BAR scale and Red PSI - Accuracy 2,5% - Aluminium index
Working Temperature: -10 +65° C (+14 +149° F)
Working Pressure: Steady 75% - Variable 60%
Overpressure not admitted
If you wish a customized offer for large quantities or dials with your logo Contact us
Reviews for Glycerine filled pressure gauge for washer 400 Bar dn 40mm back
Dimensions: B=25mm D=40,5mm D1=44mm H=43mm
