Glycerine filled pressure 160 Bar gauge diameter dn 100mm flange

100FC160.MGE
New

Dimensions: B=39mm D=98,5mm D1=128mm E=18,3mm H=82mm CH=22

help_outlineAsk about product
Glycerine filled pressure 160 Bar gauge diameter dn 100mm flange

Glycerine filled pressure 160 Bar gauge diameter dn 100mm flange



  Shipping Policies

Goods travel on behalf of and at the risk of the purchaser. Any damage or tampering occurring durin

  Returns Policies

The customer, with reference to the Legislative Decree of 22 May 1999, n. 185, you can exercise the

€59.00
Certificates: NO
Guarnizione di tenuta: NO
Staffa: NO
Quantity

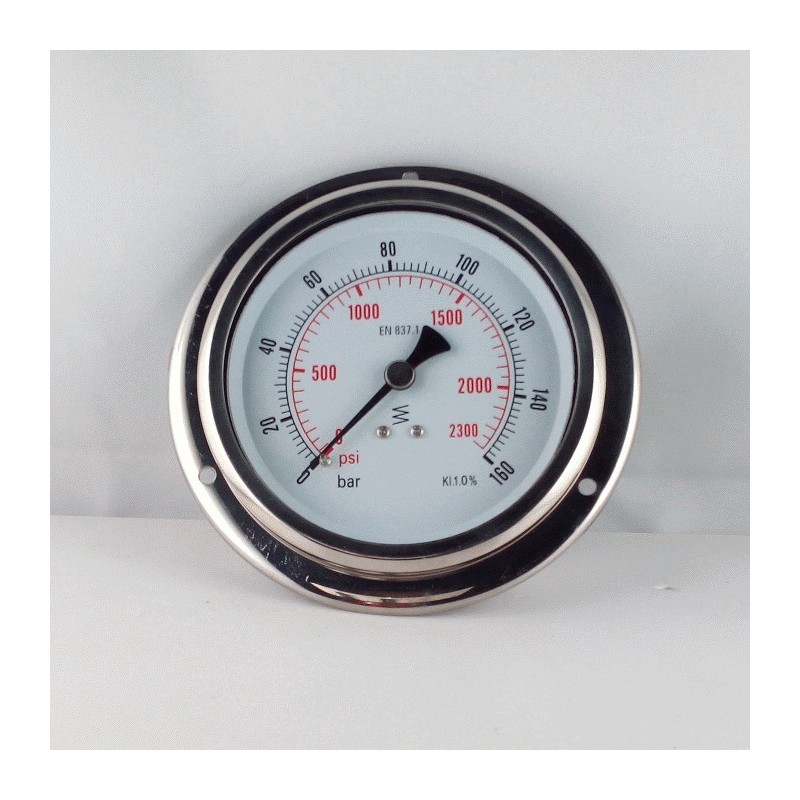

Glycerine filled pressure gauge diameter 100mm range 0/160 Bar with front flange for panel mounting.
Suitable for all process gaseous and liquid that don't attack copper alloy parts. Intended for adverse service conditions where pulsating or vibration exists. Hydraulics, Compressors

Pressure gauge made according UNI EN 837.1 norms - Stainless steel case aisi 304 dial 100mm. - aisi 304 bayonet ring - Polycabonated windows - BRASS movement and pivot - BACK cilindrical 1/2 Bspp (ISO 228) eccentric connection with removable u-clamp - Aluminium dial White background - Black BAR scale and Red PSI one - Accuracy 1,0% - Aluminium index. Gauge can be completed with front flange for panel mounting (see options).

Working Temperature: -10 +65° C (+14 +149° F)
Working Pressure: Steady 75% - Variable 60%
Overpressure 15%


If you wish a customized offer for large quantities or dials with your logo Contact us

100FC160.MGE
