Glycerine filled compound gauge -1+0,6 Bar wall flange dn 100mm

100B-1+0,6.MGE
New

Dimensions: A=10mm B=38mm D=98,5mm D1=128mm H=82mm  CH=22mm

help_outlineAsk about product
Glycerine filled compound gauge -1+0,6 Bar wall flange dn 100mm

Glycerine filled compound gauge -1+0,6 Bar wall flange dn 100mm



  Politiche per le spedizioni

(modificale nel modulo Rassicurazioni cliente)

  Politiche per i resi

(modificale nel modulo Rassicurazioni cliente)

€62.00
VAT included
Certification: NO
Seal: NO
Quantity

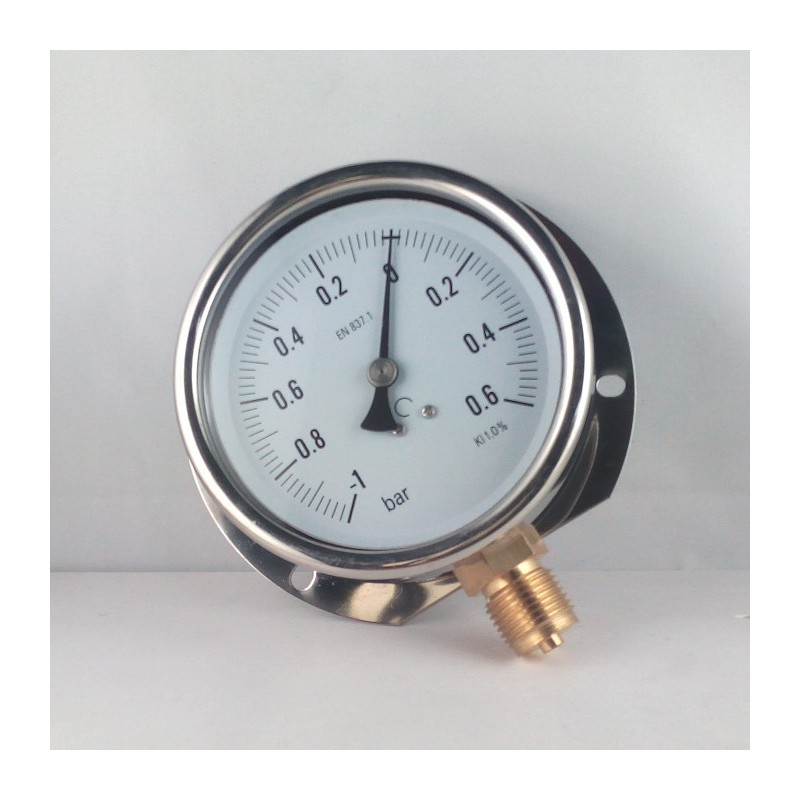

Glycerine filled compound gauge diameter 100mm range -1/0,6 Bar with back flange
Suitable for all process gaseous and liquid that don't attack copper alloy parts. Intended for adverse service conditions where pulsating or vibration exists. Hydraulics, Compressors

Pressure gauge made according UNI EN 837.1 norms - Stainless steel case aisi 304 dial 100mm. - aisi 304 bayonet ring - Polycabonated windows - BRASS movement and pivot - BOTTOM cilindrical 1/2 Bspp (ISO 228) connection - Aluminium dial White background - Black BAR scale - Accuracy 1,0% - Aluminium index

Working Temperature: -10 +65° C (+14 +149° F)
Working Pressure: Steady 75% - Variable 60%
Overpressure 15%

If you wish a customized offer for large quantities or dials with your logo Contact us
