Glycerine filled pressure gauge 400 Bar flange dn 50mm back
50FC400.MGE
New
Dimensions: B=28mm D=51mm D1=72mm H=50mm CH=14
Shipping Policies
Goods travel on behalf of and at the risk of the purchaser. Any damage or tampering occurring durin
Returns Policies
The customer, with reference to the Legislative Decree of 22 May 1999, n. 185, you can exercise the
€25.00

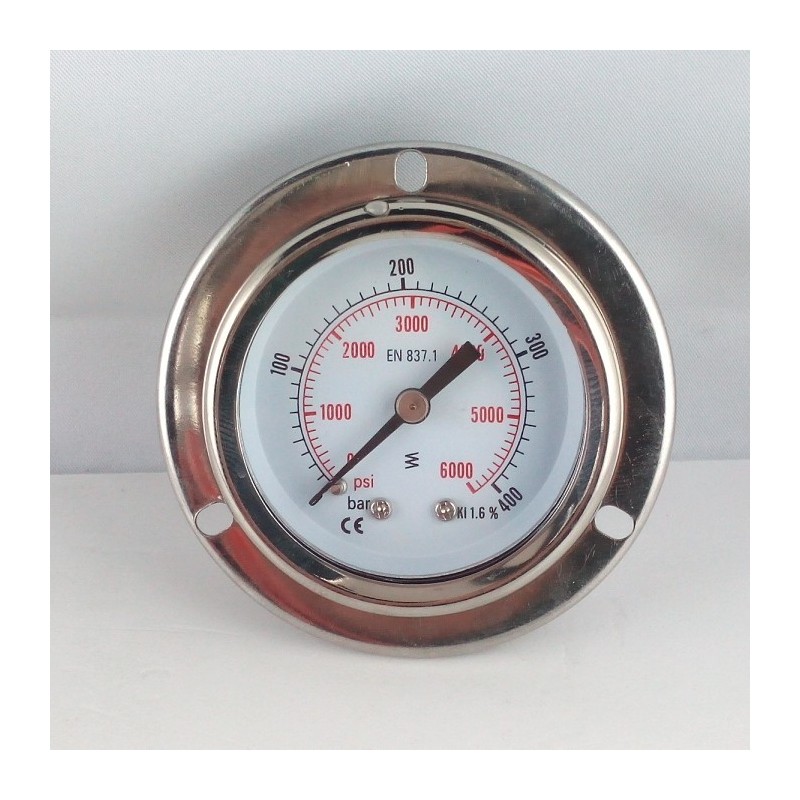

Glycerine filled pressure gauge with flange for panel mounting diameter 50mm range 0/400 Bar
Suitable for all process gaseous and liquid that don't attack copper alloy parts. Intended for adverse service conditions where pulsating or vibration exists. Hydraulics, Compressors
Pressure gauge made according UNI EN 837.1 norms - Stainless steel case aisi 304 dial 50mm. - BRASS movement and pivot - BACK cilindrical connection 1/4 bspp (ISO 228) - Aluminium dial White background - Black BAR scale and Red PSI (except compoud gauge) - Accuracy 2,5% - Aluminium index
Working Temperature: -10 +65° C (+14 +149° F)
Working Pressure: Steady 75% - Variable 60%
Overpressure not admitted
If you wish a customized offer for large quantities or dials with your logo Contact us
50FC400.MGE
New
Comments (0)
No customer reviews for the moment.
Dimensions: B=28mm D=51mm D1=72mm H=50mm CH=14
