Glycerine filled pressure gauge 1000 Bar diameter dn 63mm back
63PD1000.MGE
New
Dimension: B=29mm D=62mm D1=68mm H=53mm
Shipping Policies
Goods travel on behalf of and at the risk of the purchaser. Any damage or tampering occurring durin
Returns Policies
The customer, with reference to the Legislative Decree of 22 May 1999, n. 185, you can exercise the
€36.00
No tax

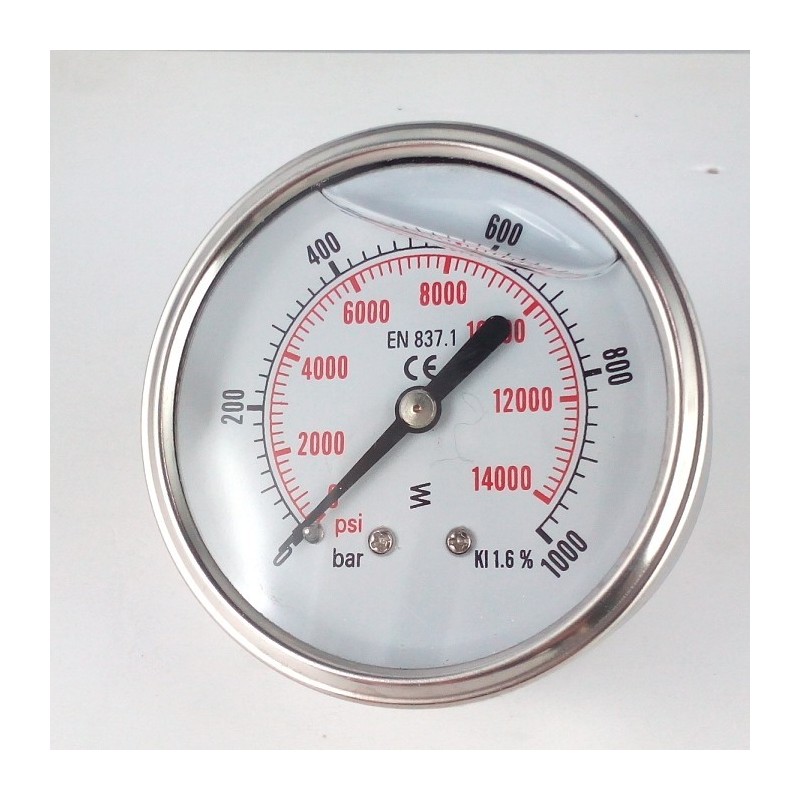

Glycerine filled pressure gauge diameter 63mm range 0/1000 Bar also available with flange (already mounted) or u-clamp for panel mounting
Suitable for all process gaseous and liquid that don't attack copper alloy parts. Intended for adverse service conditions where pulsating or vibration exists. Hydraulics, Compressors
Pressure gauge made according UNI EN 837.1 norms - Stainless steel case aisi 304 dial 63mm. - BRASS movement and pivot - BACK cilindrical connection 1/4 bspp (ISO 228) - Aluminium dial White background - Black BAR scale and Red PSI (except compoud gauge) - Accuracy 1,6% - Aluminium index
Working Temperature: -10 +65° C (+14 +149° F)
Working Pressure: Steady 75% - Variable 60%
Overpressure not admitted
If you wish a customized offer for large quantities or dials with your logo Contact us
63PD1000.MGE
Data sheet
- Diameter
- 63mm
- Connection position
- Posteriore - Assiale
- Range
- 0/1000 Bar
New
Reviews for Glycerine filled pressure gauge 1000 Bar diameter dn 63mm back
Dimension: B=29mm D=62mm D1=68mm H=53mm
