Glycerine filled pressure 1,6 Bar gauge diameter dn 100mm
100PA1,6.MGE
New
Shipping Policies
Goods travel on behalf of and at the risk of the purchaser. Any damage or tampering occurring durin
Returns Policies
The customer, with reference to the Legislative Decree of 22 May 1999, n. 185, you can exercise the
€56.00
No tax

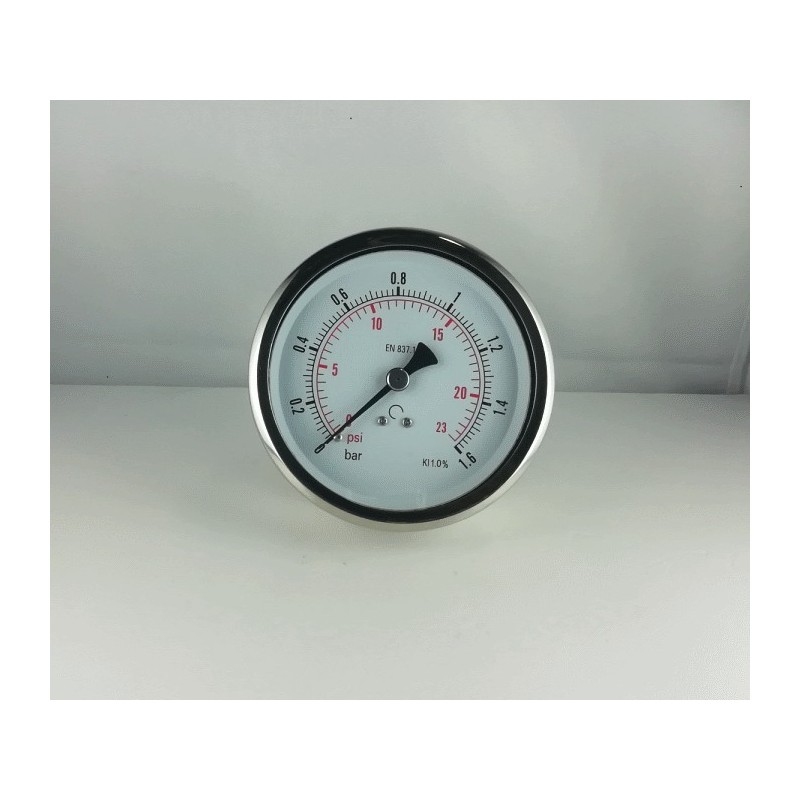

Glycerine filled pressure gauge diameter 100mm range 0/1,6 Bar
Suitable for all process gaseous and liquid that don't attack copper alloy parts. Intended for adverse service conditions where pulsating or vibration exists. Hydraulics, Compressors
Pressure gauge made according UNI EN 837.1 norms - Stainless steel case aisi 304 dial 100mm. - aisi 304 bayonet ring - Polycabonated windows - BRASS movement and pivot - BACK cilindrical 1/2 Bspp (ISO 228) eccentric - Aluminium dial White background - Black BAR scale and Red PSI one - Accuracy 1,0% - Aluminium index. Gauge can be completed with front flange for panel mounting (see options).
Working Temperature: -10 +65° C (+14 +149° F)
Working Pressure: Steady 75% - Variable 60%
Overpressure 15%
Dimensions : B=36mm D=98,5mm D1=110mm H=82mm H=82mm
If you wish a customized offer for large quantities or dials with your logo Contact us
100PA1,6.MGE
Data sheet
- Diameter
- 100mm
- Connection position
- Posteriore - Assiale
- Range
- 0/1,6 Bar
New
