Glycerine filled pressure gauge 4 Bar diameter dn 63mm back

63PA4.MGE
New

Dimension: B=29mm D=62mm D1=68mm H=53mm

help_outlineAsk about product
Glycerine filled pressure gauge 4 Bar diameter dn 63mm back

Glycerine filled pressure gauge 4 Bar diameter dn 63mm back



  Shipping Policies

Goods travel on behalf of and at the risk of the purchaser. Any damage or tampering occurring durin

  Returns Policies

The customer, with reference to the Legislative Decree of 22 May 1999, n. 185, you can exercise the

Our privacy policy

Our Privacy Policy explains our principles when it comes to the collection, processing, and storage of your information. This policy specifically explains how we employ cookies, as well as the options you have to control them.

  • 1 What are cookies?

    Cookies are small pieces of data, stored in text files that are stored on your computer or other device when websites are loaded in a browser. They are widely used to "remember" you and your preferences, either for a single visit or for multiple repeat visits

  • 2 How we use cookies

    We use cookies for a number of different purposes. Some cookies are necessary for technical reasons; some enable a personalized experience for both visitors and registered users; and some allow the display of advertising from selected third party networks.

  • 3 Controlling Cookies

    Visitors may wish to restrict the use of cookies or completely prevent them from being set. If you disable cookies, please be aware that some of the features of our service may not function correctly

  • 4 Information We Collect

    We only collect information about you if we have a reason to do so-for example, to provide our services, to communicate with you, or to make our services better.

We are committed to maintaining the trust and confidence of our website visitors. We do not collect, sell, rent or trade email lists or any data with other companies and businesses. Have a look at our Privacy Policy page to read detail information on when and why we collect your personal information, how we use it, the limited conditions under which we may disclose it to others and how we keep it secure.

We may change Cookies and Privacy policy from time to time. This policy is effective from 24th May 2018.

€17.50
Certificates: NO
Flangia frontale: NO
Guarnizione di tenuta: NO
Staffa: NO
Quantity

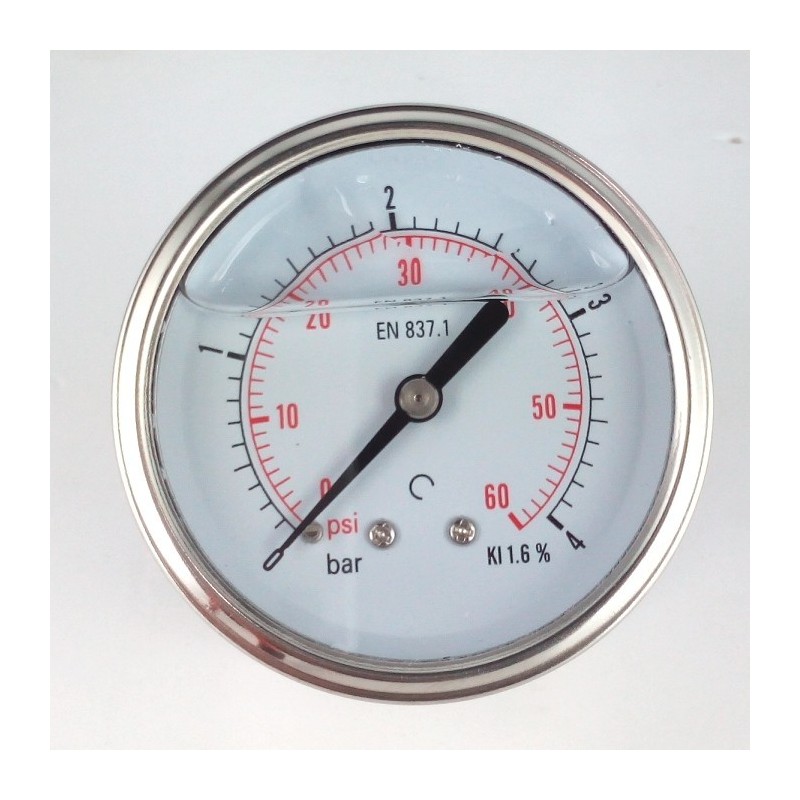

Glycerine filled pressure gauge diameter 63mm range 0/4 Bar also available with flange (already mounted) or u-clamp for panel mounting
Suitable for all process gaseous and liquid that don't attack copper alloy parts. Intended for adverse service conditions where pulsating or vibration exists. Hydraulics, Compressors

Pressure gauge made according UNI EN 837.1 norms - Stainless steel case aisi 304 dial 63mm. - BRASS movement and pivot - BACK cilindrical connection 1/4 bspp (ISO 228) - Aluminium dial White background - Black BAR scale and Red PSI (except compoud gauge) - Accuracy 1,6% - Aluminium index

Working Temperature: -10 +65° C (+14 +149° F)
Working Pressure: Steady 75% - Variable 60%
Overpressure not admitted


If you wish a customized offer for large quantities or dials with your logo Contact us

63PA4.MGE

Data sheet

Diameter
63mm
Connection position
Posteriore - Assiale
Range
0/4 Bar
New
