Dry pressure gauge 250 Bar diameter dn 40mm front flange
40FC250.150
New
Dimensions: B= 22mm D=41mm D1=60,5mm D2=43mm H=40mm
Shipping Policies
Goods travel on behalf of and at the risk of the purchaser. Any damage or tampering occurring durin
Returns Policies
The customer, with reference to the Legislative Decree of 22 May 1999, n. 185, you can exercise the
€13.50
No tax

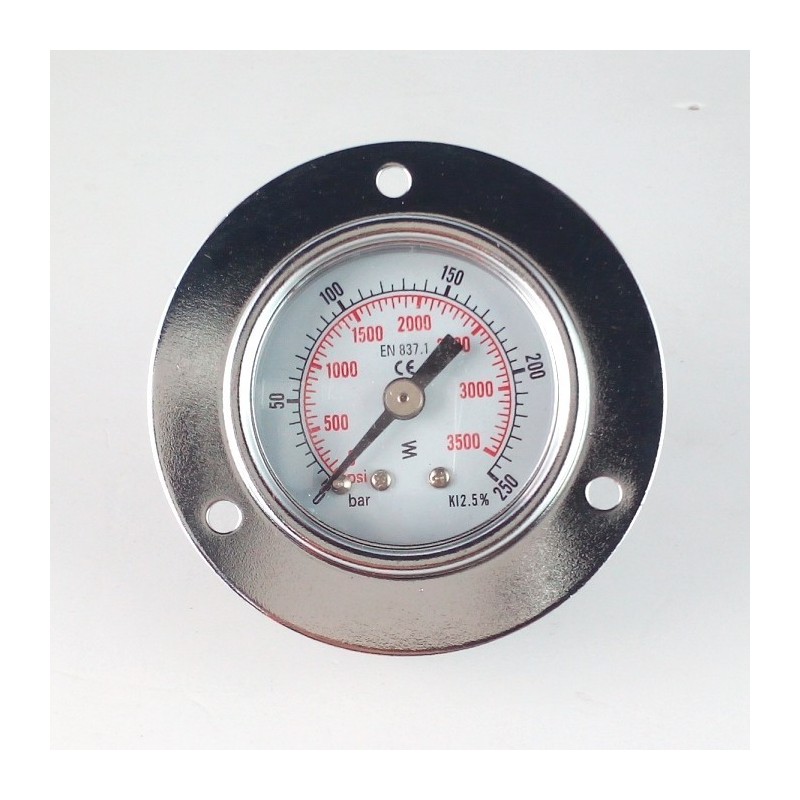

Dry pressure gauge diameter 40mm range 0/250 Bar with flange for panel
Suitable for all process gaseous and liquid don't attack copper alloy parts, Pneumatics, Heating, ventilation, air-conditioning, Medical engineering
Pressure gauge made according UNI EN 837.1 norms - BLACK steel case . - BRASS movement and pivot -Panel FLANGE 3 hole @ 120°- BACK conical connection 1/8 Bspt (ISO 7/1) - Aluminium dial White background - Black BAR scale and Red PSI one (double scale except compoud gauge) - Accuracy 2,5% Aluminium index
Working Temperature -10 +60° C (+ 14 +140° F)
Overpressure 15%
If you wish a customized offer for large quantities or dials with your logo Contact us
40FC250.150
Data sheet
- Diameter
- 40mm
- Connection position
- Posteriore + Flangia frontale
- Range
- 0/250 Bar
New
Reviews for Dry pressure gauge 250 Bar diameter dn 40mm front flange
Dimensions: B= 22mm D=41mm D1=60,5mm D2=43mm H=40mm
