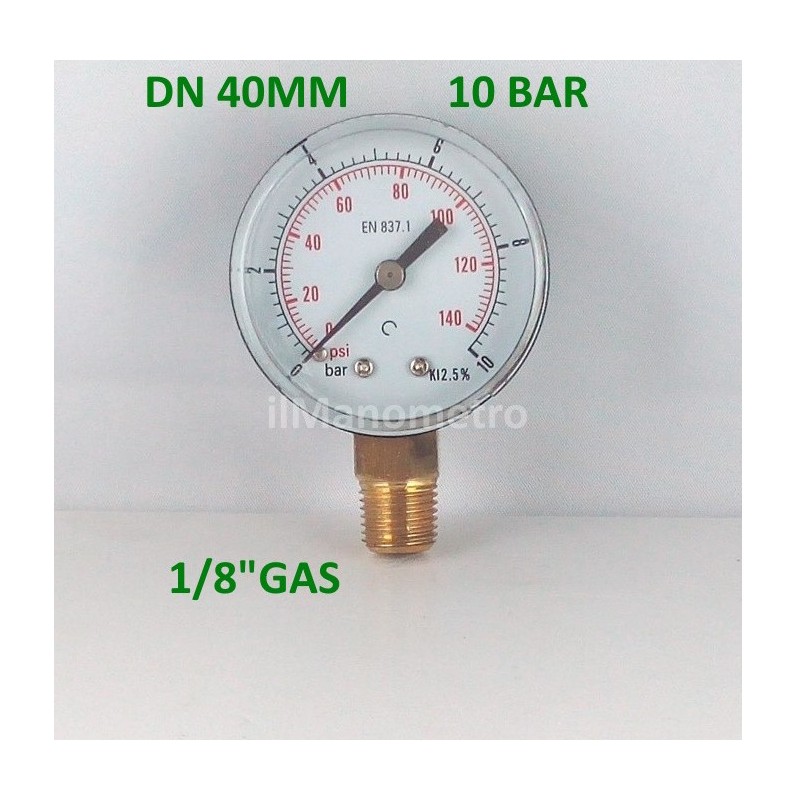

Dry pressure gauge 10 Bar diameter dn 40mm bottom

Dry pressure gauge diameter 40mm range 0/10 Bar
Suitable for all process gaseous and liquid don't attack copper alloy parts, Pneumatics, Heating, ventilation, air-conditioning, Medical engineering

Pressure gauge made according UNI EN 837.1 norms - BLACK steel case . - BRASS movement and pivot - BOTTOM conical connection 1/8 bspt (ISO 7/1) - Aluminium dial White background - Black BAR scale and Red PSI one (double scale except compoud gauge) - Accuracy 2,5% Aluminium index

Working Temperature -10 +60° C (+ 14 +140° F)
Overpressure 15%

If you wish a customized offer for large quantities or dials with your logo Contact us
