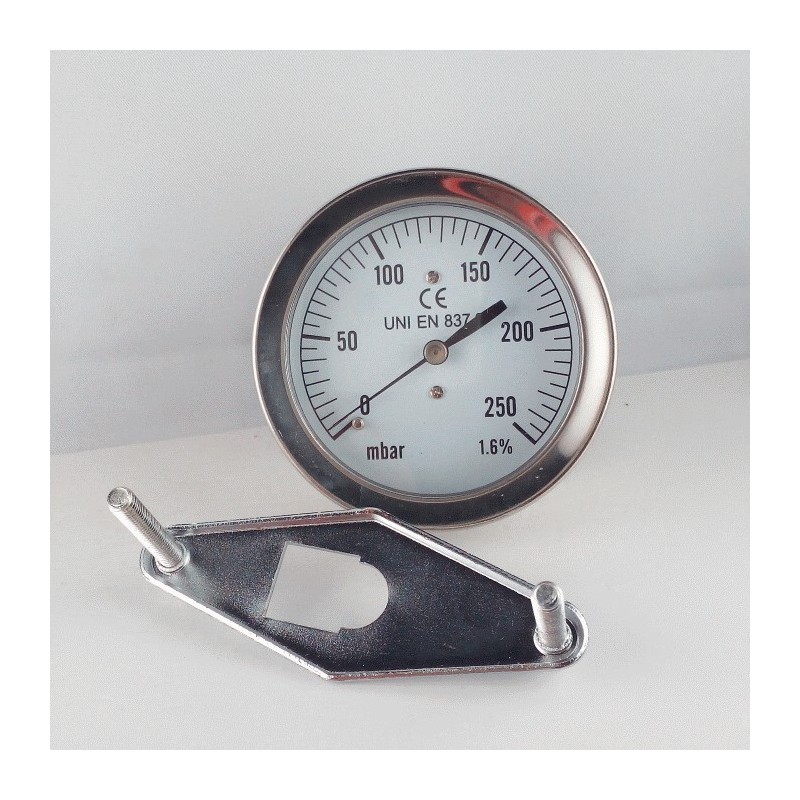

Pressure gauge 250 mBar diameter dn 63mm u-clamp

63SC250.PM
New

Dimensions: B=32mm D=61,2mm D1=69mm H=61mm

help_outlineAsk about product
Pressure gauge 250 mBar diameter dn 63mm u-clamp

Pressure gauge 250 mBar diameter dn 63mm u-clamp



  Shipping Policies

Goods travel on behalf of and at the risk of the purchaser. Any damage or tampering occurring durin

  Returns Policies

The customer, with reference to the Legislative Decree of 22 May 1999, n. 185, you can exercise the

€56.00
Certificates: NO
Flangia frontale: NO
Guarnizione di tenuta: NO
Oxygen degreasing: NO
Quantity

Pressure gauge diameter 63mm back connection range 0/250 mBar
Casing Gauge Made according UNI EN 837.3 -  stainless steel case dial 63mm. IP55 - OT58 BRASS movement and pivot - BOTTOM connection - scale in mBar - aluminium dial and index - Accuracy 1,6%

Working temperature -10 +60° C (-4 +140° F)
Max working pressure 75% FSV for 15 min.
Overpressure NOT ADMITTED


If you wish a customized offer for large quantities or dials with your logo Contact us

63SC250.PM
New
