Vacuum gauge -160 mBar diameter dn 63mm back
63P-160.PM
New
Dimensions: B=32mm D=61,2mm D1=69mm H=61mm
Shipping Policies
Goods travel on behalf of and at the risk of the purchaser. Any damage or tampering occurring durin
Returns Policies
The customer, with reference to the Legislative Decree of 22 May 1999, n. 185, you can exercise the
€56.00
No tax

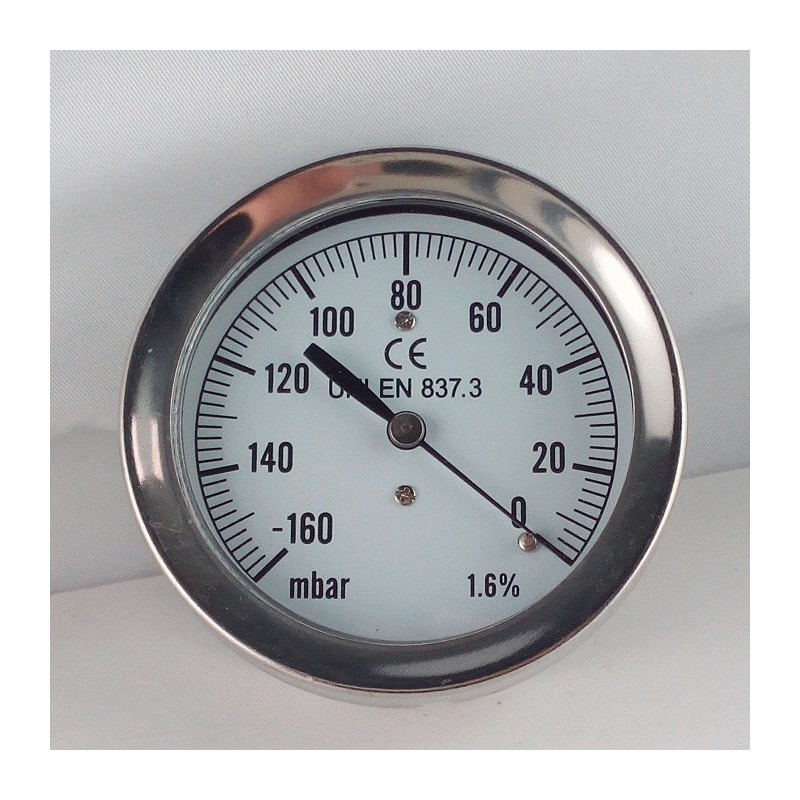

Vacuum gauge diameter 63mm back connection range -160/0 mBar
Casing Gauge Made according UNI EN 837.3 - chromed steel case dial 63mm. IP55 - OT58 BRASS movement and pivot - BOTTOM connection - scale in mBar - aluminium dial and index - Accuracy 1,6%
Working temperature -10 +60° C (-4 +140° F)
Max working pressure 75% FSV for 15 min.
Overpressure NOT ADMITTED
If you wish a customized offer for large quantities or dials with your logo Contact us
63P-160.PM
Data sheet
- Diameter
- 63mm
- Connection position
- Posteriore - Assiale
- Range
- -160 mBar
New
Reviews for Vacuum gauge -160 mBar diameter dn 63mm back
Dimensions: B=32mm D=61,2mm D1=69mm H=61mm
