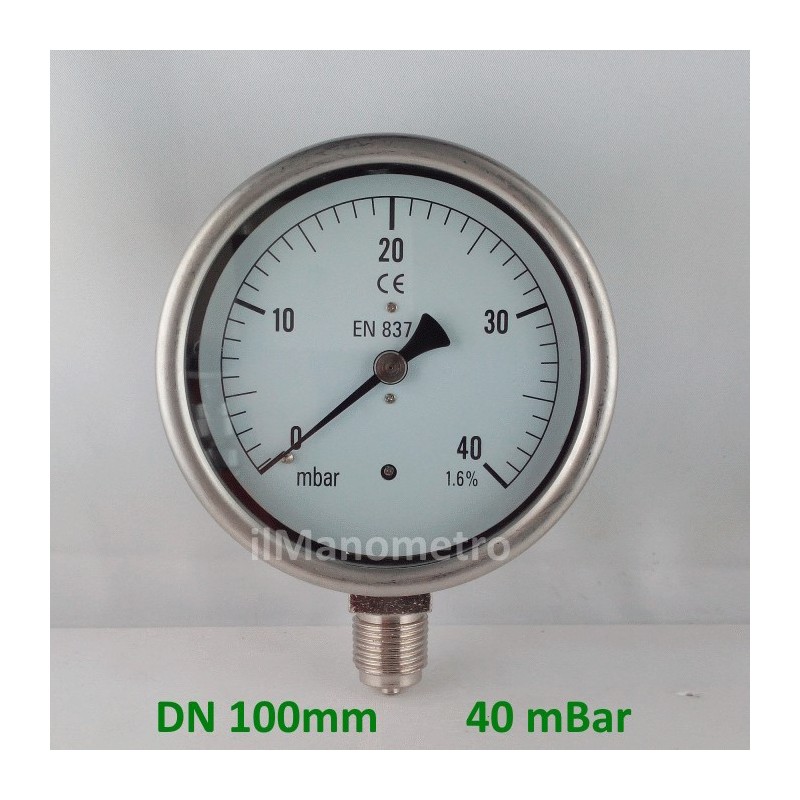

Capsule pressure gauge 40 mBar diameter dn 100mm bottom
100RB40.PM
New
Dimensions: B=49mm D=99,5mm D1=110,5mm H=89mm
Shipping Policies
Goods travel on behalf of and at the risk of the purchaser. Any damage or tampering occurring durin
Returns Policies
The customer, with reference to the Legislative Decree of 22 May 1999, n. 185, you can exercise the
€85.00
No tax
Capsule pressure gauge low pressure diameter 100mm bottom connection range 0/40 mBar
Capsule Gauge Made according UNI EN 837.3 - Stainless steel aisi 316 Case, brass movement and pivot - BOTTOM cilindrical connection (ISO 228) - scale in mBar - aluminium dial and index - Accuracy 1,6%
Working temperature -10 +60° C (-4 +140° F)
Max working pressure 75% FSV for 15 min.
Overpressure NOT ADMITTED
If you wish a customized offer for large quantities or dials with your logo Contact us
100RB40.PM
Data sheet
- Diameter
- 100mm
- Connection position
- Radiale Verticale
- Range
- 40 mBar
New
Reviews for Capsule pressure gauge 40 mBar diameter dn 100mm bottom
Dimensions: B=49mm D=99,5mm D1=110,5mm H=89mm
