Glycerine pressure gauges

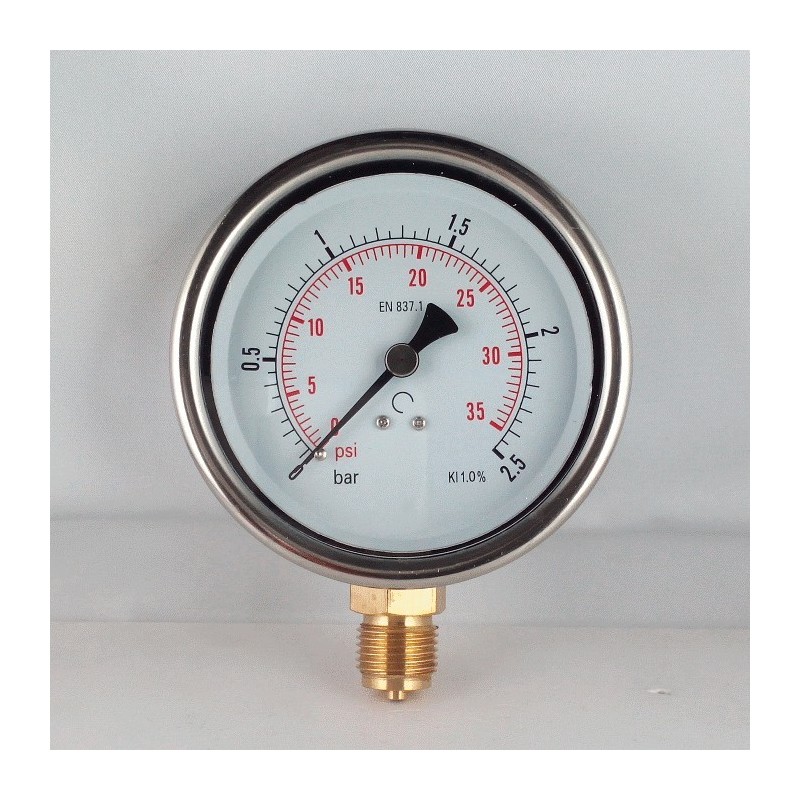

Glycerine filled pressure gauge 2,5 Bar diameter dn 100mm bottom

New product

40,00 € tax incl.

Add to wishlist

Products questions

La tua domanda è stata inviata

  •     *Campi Richiesti

Caricando

Volume discounts

QuantityPriceYou Save
10 40,00 € Up to 20,00 €
30 40,00 € Up to 96,00 €
50 40,00 € Up to 300,00 €

Data sheet

Diameter100mm
Connection positionBottom Vertical
Range0/2,5

More info

Glycerine filled vacuum gauge diameter 100mm range 0/2,5 Bar available also with back flange
Suitable for all process gaseous and liquid that don't attack copper alloy parts. Intended for adverse service conditions where pulsating or vibration exists. Hydraulics, Compressors

Pressure gauge made according UNI EN 837.1 norms - Stainless steel case aisi 304 dial 100mm. - aisi 304 bayonet ring - Polycabonated windows - BRASS movement and pivot - BOTTOM cilindrical 1/2 Bspp (ISO 228) connection - Aluminium dial White background - Black BAR scale - Accuracy 1,0% - Aluminium index

Working Temperature: -10 +65° C (+14 +149° F)
Working Pressure: Steady 75% - Variable 60%
Overpressure 15%
Dimensions : A= 10mm B=38mm D=98,5mm D1=110mm H=82mm

If you wish a customized offer for large quantities or dials with your logo Contact us
