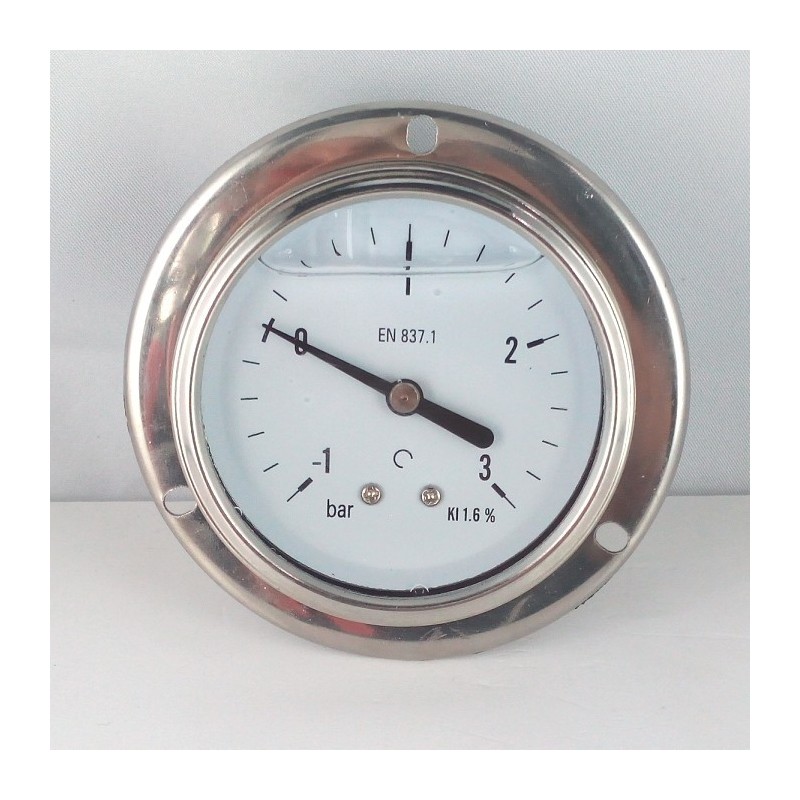

-1+3 glycerine filled compound gauge flanged Bar diameter dn 63mm
63FA-1+3.MGE
New
Dimensions: B=29mm D=62mm D1=83mm H=53mm
Shipping Policies
Goods travel on behalf of and at the risk of the purchaser. Any damage or tampering occurring durin
Returns Policies
The customer, with reference to the Legislative Decree of 22 May 1999, n. 185, you can exercise the
€23.90
No tax
Glycerine filled compound gauge with flange for panel diameter 63mm range -1/3 Bar.
Suitable for all process gaseous and liquid that don't attack copper alloy parts. Intended for adverse service conditions where pulsating or vibration exists. Hydraulics, Compressors
Pressure gauge made according UNI EN 837.1 norms - Stainless steel case aisi 304 dial 63mm. - BRASS movement and pivot - BACK cilindrical connection 1/4 bspp (ISO 228) - Aluminium dial White background - Black BAR scale and Red PSI (except compoud gauge) - Accuracy 1,6% - Aluminium index
Working Temperature: -10 +65° C (+14 +149° F)
Working Pressure: Steady 75% - Variable 60%
Overpressure not admitted
If you wish a customized offer for large quantities or dials with your logo Contact us
63FA-1+3.MGE
Data sheet
- Diameter
- 63mm
- Connection position
- Posteriore + Flangia frontale
- Range
- -1/3 Bar
New
Reviews for -1+3 glycerine filled compound gauge flanged Bar diameter dn 63mm
Dimensions: B=29mm D=62mm D1=83mm H=53mm
