Stainless steel pressure gauges

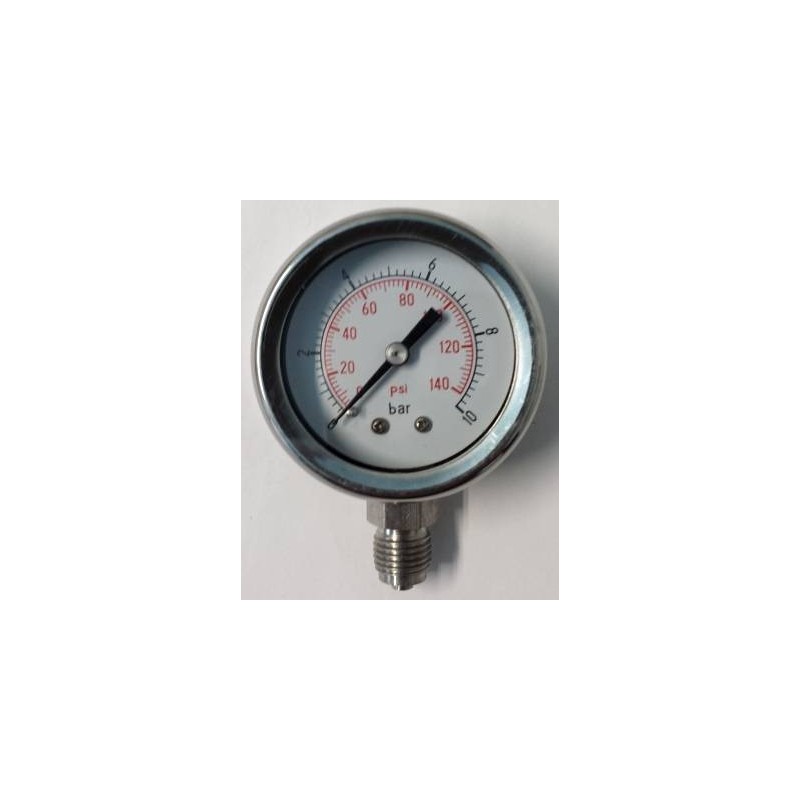

Stainless steel pressure gauge 10 Bar diameter dn 50mm bottom

New product

34,00 € tax incl.

Add to wishlist

Products questions

La tua domanda è stata inviata

  •     *Campi Richiesti

Caricando

Volume discounts

QuantityPriceYou Save
10 34,00 € Up to 17,00 €
30 34,00 € Up to 81,60 €
50 34,00 € Up to 255,00 €

Data sheet

Diameter50mm
Connection positionBottom Vertical
Range0/10

More info

Completely stainless steel pressure gauge diameter 50mm range 0/10 Bar available also with clycerine (see options)
Suitable for corrosive process gas or liquid. With liquid filled case for applications with high dynamic pressure pulsations or vibrations. Chemical/petrol-chemical, power stations, mining, on- and offshore, environmental technology, mechanical engineering and plant construction.

All stainless steel pressure gauge made according UNI EN 837.1 norms - case aisi 304 dial 50mm. - Stainless steel aisi 316 movement and pivot - BOTTOM cilindrical connection 1/4 bspp (ISO 7/1) - Aluminium dial White background Black - BAR scale and Red PSI - Accuracy 2,5% - Aluminium index

Working Temperature: Room-Temp. -30 +65° C (-22 +149° F) - With Glycerine -10 +65° C (+14 +149° F)
Process -40 + 180° C (-40 +356° F) - With Glycerine 0 + 75°C (+32 +167° F)
Working Pressure: Steady 75% - Variable 60%
Overpressure not admitted
Dimensions : A=10mm B=30mm D=52 D1=58mm H=49mm

If you wish a customized offer for large quantities or dials with your logo Contact us
