Stainless steel pressure gauges

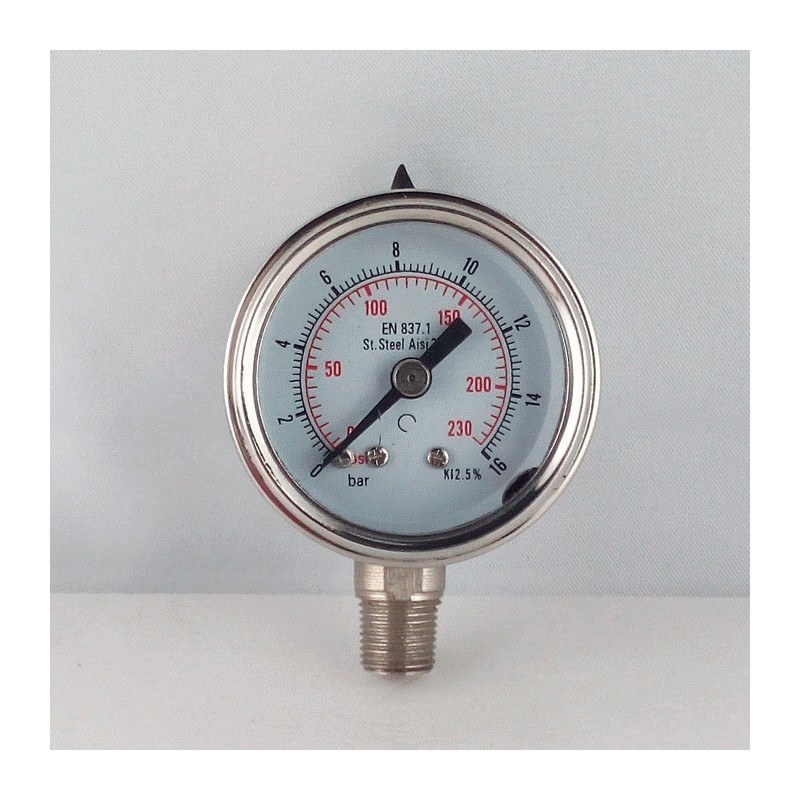

Stainless steel pressur e gauge 16 Bar diameter dn 40mm bottom

New product

Dimensions:  A=7mm B=25mm D=41 D1=45mm H=34,5mm

More details

34,00 € tax incl.

Add to wishlist

Products questions

La tua domanda è stata inviata

  •     *Campi Richiesti

Caricando

Volume discounts

QuantityPriceYou Save
10 34,00 € Up to 17,00 €
30 34,00 € Up to 81,60 €
50 34,00 € Up to 255,00 €

Data sheet

Diameter40mm
Connection positionBottom Vertical
Range0/16

More info

Completely stainless steel pressure gauge diameter 40mm range 0/16 Bar available also glycerine filled (see options)
Suitable for corrosive process gas or liquid. With liquid filled case for applications with high dynamic pressure pulsations or vibrations. Chemical/petrol-chemical, power stations, mining, on- and offshore, environmental technology, mechanical engineering and plant construction.

All stainless steel pressure gauge made according UNI EN 837.1 norms - case aisi 304 dial 40mm. - Stainless steel aisi 316 movement and pivot - BOTTOM conical connection 1/8 bspt (ISO 7/1) on dial 40 - Aluminium dial White background Black - BAR scale and Red PSI - Accuracy 2,5% - Aluminium index

Working Temperature: Room-Temp. -30 +65° C (-22 +149° F) - With Glycerine -10 +65° C (+14 +149° F)
Process -40 + 180° C (-40 +356° F) - With Glycerine 0 + 75°C (+32 +167° F)
Working Pressure: Steady 75% - Variable 60%
Overpressure not admitted


If you wish a customized offer for large quantities or dials with your logo Contact us
