Stainless steel pressure gauges

Stainless steel pressure gauge 4 Bar diameter dn 63mm bottom

New product

Dimensions: A=10mm B=31mm D=62 D1=66mm H=54mm CH=14mm

More details

34,00 € tax incl.

Add to wishlist

Products questions

La tua domanda è stata inviata

  •     *Campi Richiesti

Caricando

Volume discounts

QuantityPriceYou Save
10 34,00 € Up to 17,00 €
30 34,00 € Up to 81,60 €
50 34,00 € Up to 255,00 €

Data sheet

Diameter63mm
Connection positionBottom Vertical
Range0/4

More info

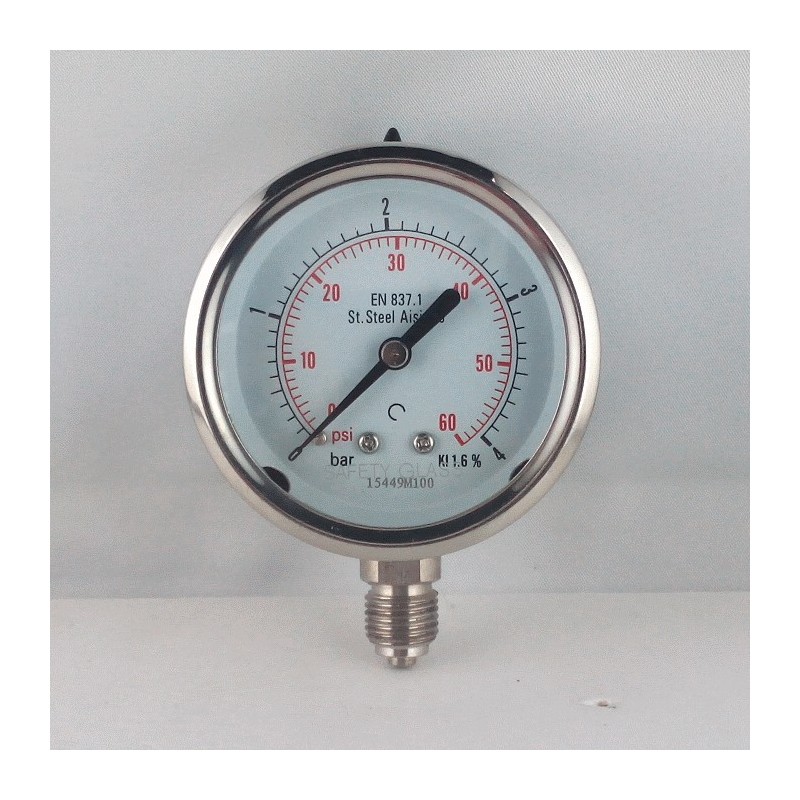

Completely stainless steel pressure gauge diameter 63mm range 0/4 Baro available also with glycerine (see optins). Suitable for corrosive process gas or liquid. With liquid filled case for applications with high dynamic pressure pulsations or vibrations. Chemical/petrol-chemical, power stations, mining, on- and offshore, environmental technology, mechanical engineering and plant construction.

All stainless steel pressure gauge made according UNI EN 837.1 norms - case aisi 304 dial 63mm. - Stainless steel aisi 316 movement and pivot - BOTTOM cilindrical connection 1/4 bspp (ISO 7/1) - Aluminium dial White background Black - BAR scale and Red PSI - Accuracy 1,6% - Aluminium index

Working Temperature: Room-Temp. -30 +65° C (-22 +149° F) - With Glycerine -10 +65° C (+14 +149° F)
Process -40 + 180° C (-40 +356° F) - With Glycerine 0 + 75°C (+32 +167° F)
Working Pressure: Steady 75% - Variable 60%
Overpressure not admitted


If you wish a customized offer for large quantities or dials with your logo Contact us
