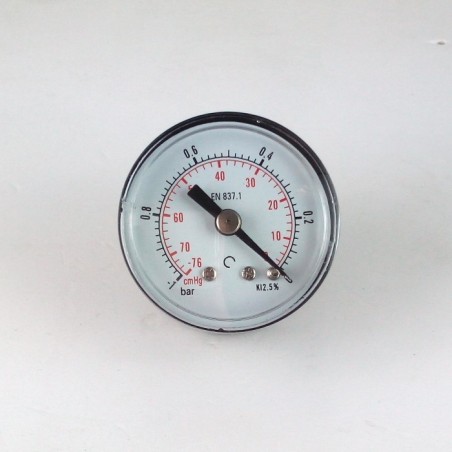

Dry vacuum gauge -1 Bar diameter dn 40mm back
40P-1.150
New
Dimensions: B= 22mm D=41mm H=40mm CH=11mm
help_outlineAsk about product
Grade
Read user reviews (4)
Shipping Policies
Goods travel on behalf of and at the risk of the purchaser. Any damage or tampering occurring durin
Returns Policies
The customer, with reference to the Legislative Decree of 22 May 1999, n. 185, you can exercise the
€9.00
VAT included
Dry vacuum gauge diameter 40mm -1/0 Bar
Suitable for all process gaseous and liquid don't attack copper alloy parts, Pneumatics, Heating, ventilation, air-conditioning, Medical engineering
Pressure gauge made according UNI EN 837.1 norms - BLACK steel case . - BRASS movement and pivot -BACK conical connection 1/8 Bspt (ISO 7/1) - Aluminium dial White background - Black BAR scale and Red PSI one (double scale except compoud gauge) - Accuracy 2,5% Aluminium index
Working Temperature -10 +60° C (+ 14 +140° F)
Overpressure 15%
If you wish a customized offer for large quantities or dials with your logo Contact us
40P-1.150
New
Comments (4)
Grade
No customer reviews for the moment.
Dimensions: B= 22mm D=41mm H=40mm CH=11mm
