Glycerine pressure gauges

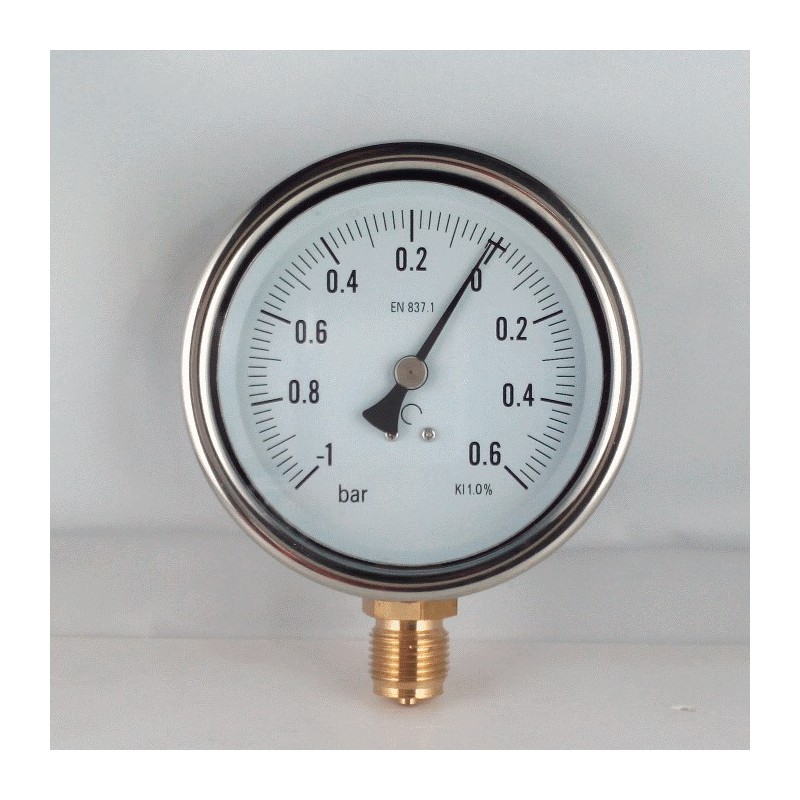

Glycerine filled compound gauge -1+0,6 Bar diameter dn 100mm bottom

New product

Dimensions: A=10mm B=38mm D=98,5mm D1=110mm H=82mm

More details

43,00 € tax incl.

Add to wishlist

Products questions

La tua domanda è stata inviata

  •     *Campi Richiesti

Caricando

Volume discounts

QuantityPriceYou Save
10 43,00 € Up to 21,50 €
30 43,00 € Up to 103,20 €
50 43,00 € Up to 322,50 €

Data sheet

Diameter100mm
Connection positionBottom Vertical
Range-1/0,6

More info

Glycerine filled compound gauge diameter 100mm range -1/0,6 Bar available also with back flange
Suitable for all process gaseous and liquid that don't attack copper alloy parts. Intended for adverse service conditions where pulsating or vibration exists. Hydraulics, Compressors

Pressure gauge made according UNI EN 837.1 norms - Stainless steel case aisi 304 dial 100mm. - aisi 304 bayonet ring - Polycabonated windows - BRASS movement and pivot - BOTTOM cilindrical 1/2 Bspp (ISO 228) connection - Aluminium dial White background - Black BAR scale - Accuracy 1,0% - Aluminium index

Working Temperature: -10 +65° C (+14 +149° F)
Working Pressure: Steady 75% - Variable 60%
Overpressure 15%

If you wish a customized offer for large quantities or dials with your logo Contact us
