Glycerine pressure gauges

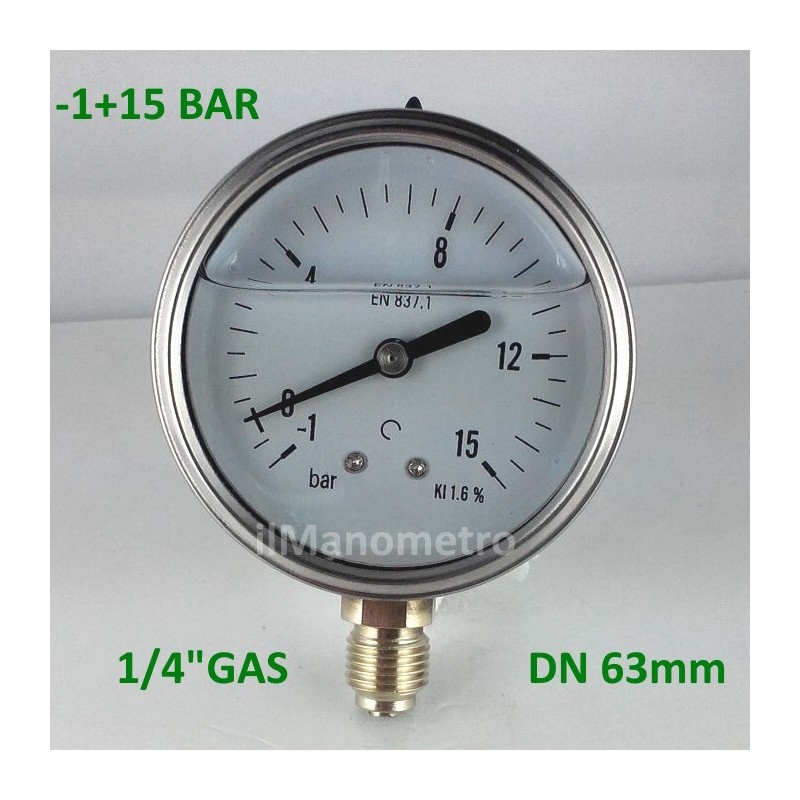

Glycerine filled pressure gauge -1+15 Bar diameter dn 63mm bottom

New product

Dimensions: A=10mm B=29mm D=62mm D1=68mm H=57mm

More details

14,50 € tax incl.

Add to wishlist

Products questions

La tua domanda è stata inviata

  •     *Campi Richiesti

Caricando

Volume discounts

QuantityPriceYou Save
10 14,50 € Up to 7,25 €
30 14,50 € Up to 34,80 €
50 14,50 € Up to 108,75 €

Data sheet

Diameter63mm
Connection positionBottom Vertical
Range-1/15

More info

Glycerine filled vacuum gauge diameter 63mm range -1/15 Bar
Suitable for all process gaseous and liquid that don't attack copper alloy parts. Intended for adverse service conditions where pulsating or vibration exists. Hydraulics, Compressors

Pressure gauge made according UNI EN 837.1 norms - Stainless steel case aisi 304 dial 63mm. - BRASS movement and pivot - BOTTOM conical connection 1/4 bspp (ISO 7/1) - Aluminium dial White background - Black BAR scale - Accuracy 1,6% - Aluminium index

Working Temperature: -10 +65° C (+14 +149° F)
Working Pressure: Steady 75% - Variable 60%
Overpressure not admitted


If you wish a customized offer for large quantities or dials with your logo Contact us
