Dry pressure gauges

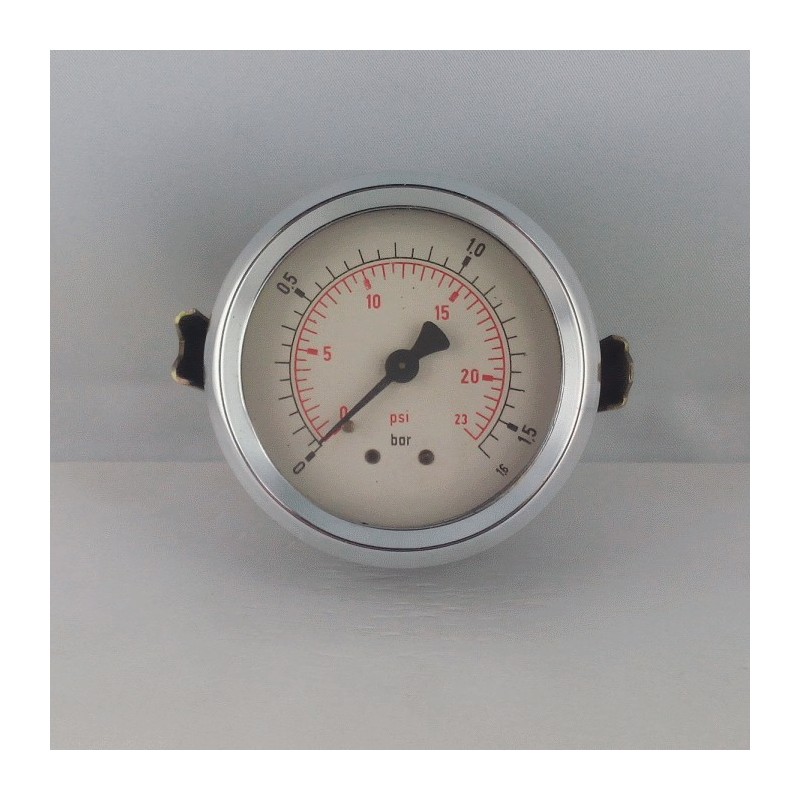

Dry pressure gauge 1,6 Bar diameter dn 63mm u-clamp

New product

Dimensions: B=29mm D=62mm D1=68mm H=50mm

More details

11,50 € tax incl.

Add to wishlist

Products questions

La tua domanda è stata inviata

  •     *Campi Richiesti

Caricando

Volume discounts

QuantityPriceYou Save
10 11,50 € Up to 5,75 €
30 11,50 € Up to 27,60 €
50 11,50 € Up to 86,25 €

Data sheet

Diameter63mm
Connection positionBack + U-clamp
Range0/1,6

More info

Dry pressure gauge diameter 63mm range 0/1,6 with u-clamp for panel.
Suitable for all process gaseous and liquid don't attack copper alloy parts, Pneumatics, Heating, ventilation, air-conditioning, Medical engineering

Pressure gauge made according UNI EN 837.1 norms - BLACK steel case . - BRASS movement and pivot - Panel U-CLAMP with cromed ring - BACK cilindrical connection 1/4 Bspp (ISO 7/1) - Aluminium dial White background - Black BAR scale and Red PSI one - Accuracy 1,6% Aluminium index

Working Temperature -10 +60° C (+ 14 +140° F)
Overpressure 15%


If you wish a customized offer for large quantities or dials with your logo Contact us
