Dry pressure gauges

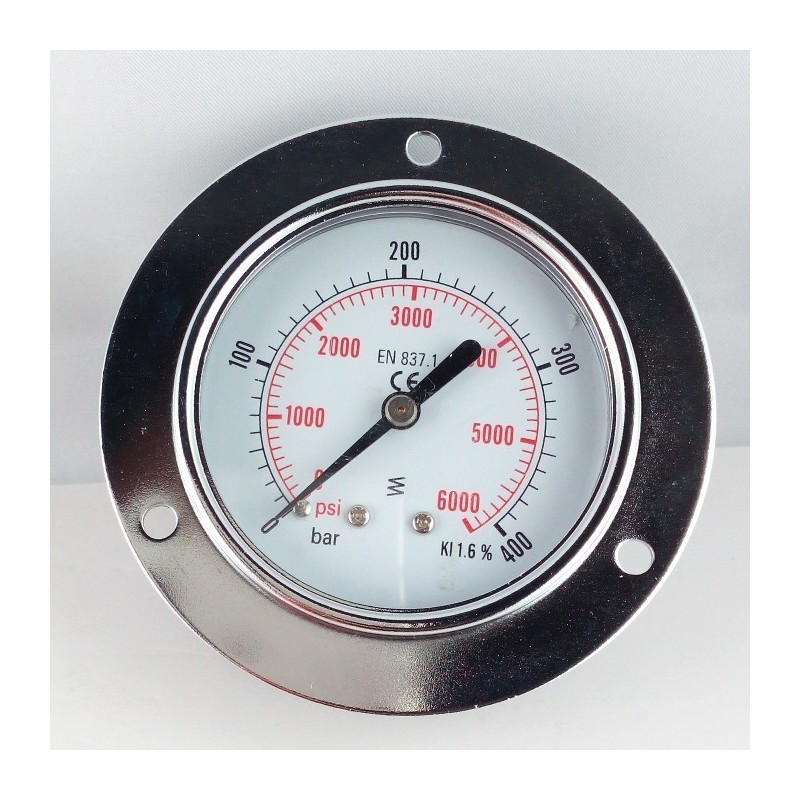

Dry pressure gauge 400 Bar diameter dn 63mm front flange

New product

Dimensions: B=22mm D=62mm D1=82,5mm D2=63,5mm H=49mm

More details

11,50 € tax incl.

Add to wishlist

Products questions

La tua domanda è stata inviata

  •     *Campi Richiesti

Caricando

Volume discounts

QuantityPriceYou Save
10 11,50 € Up to 5,75 €
30 11,50 € Up to 27,60 €
50 11,50 € Up to 86,25 €

Data sheet

Diameter63mm
Connection positionBack + Front flange
Range0/400

More info

Dry pressure gauge diameter 63mm range 0/400 Bar with front flange
Suitable for all process gaseous and liquid don't attack copper alloy parts, Pneumatics, Heating, ventilation, air-conditioning, Medical engineering

Pressure gauge made according UNI EN 837.1 norms - BLACK steel case . - BRASS movement and pivot - Panel FLANGE 3 hole @ 120°- BACK cilindrical connection 1/4 Bspp (ISO 7/1) - Aluminium dial White background - Black BAR scale and Red PSI one - Accuracy 1,6% Aluminium index

Working Temperature -10 +60° C (+ 14 +140° F)
Overpressure 15%


If you wish a customized offer for large quantities or dials with your logo Contact us
