Capsule pressure gauges

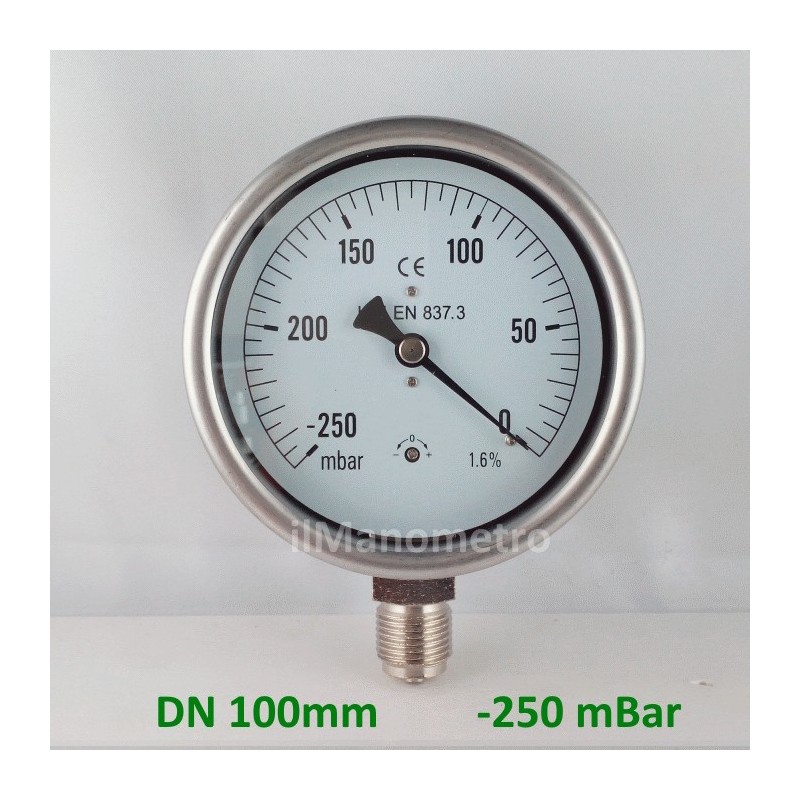

Capsule vaccum gauge -250 mBar diameter dn 100mm bottom

New product

99,00 € tax incl.

Add to wishlist

Products questions

La tua domanda è stata inviata

  •     *Campi Richiesti

Caricando

Volume discounts

QuantityPriceYou Save
10 99,00 € Up to 49,50 €
30 99,00 € Up to 237,60 €
50 99,00 € Up to 742,50 €

Data sheet

Diameter100mm
Connection positionBottom Vertical
Range-250 mBar

More info

Capsule vacuum gauge low pressure diameter 100mm bottom connection range -250/0 mBar
Capsule Gauge Made according UNI EN 837.3 - aisi 304 case dial 63 - 100 mm. IP55 - Stainless steel aisi 316 movement and pivot - BOTTOM cilindrical connection (ISO 228) - scale in mBar - aluminium dial and index - Accuracy 1,6%

Working temperature -10 +60° C (-4 +140° F)
Max working pressure 75% FSV for 15 min.
Overpressure NOT ADMITTED
Dimensions: B=41,5mm D=105mm

If you wish a customized offer for large quantities or dials with your logo Contact us
