Bottom vertical connection

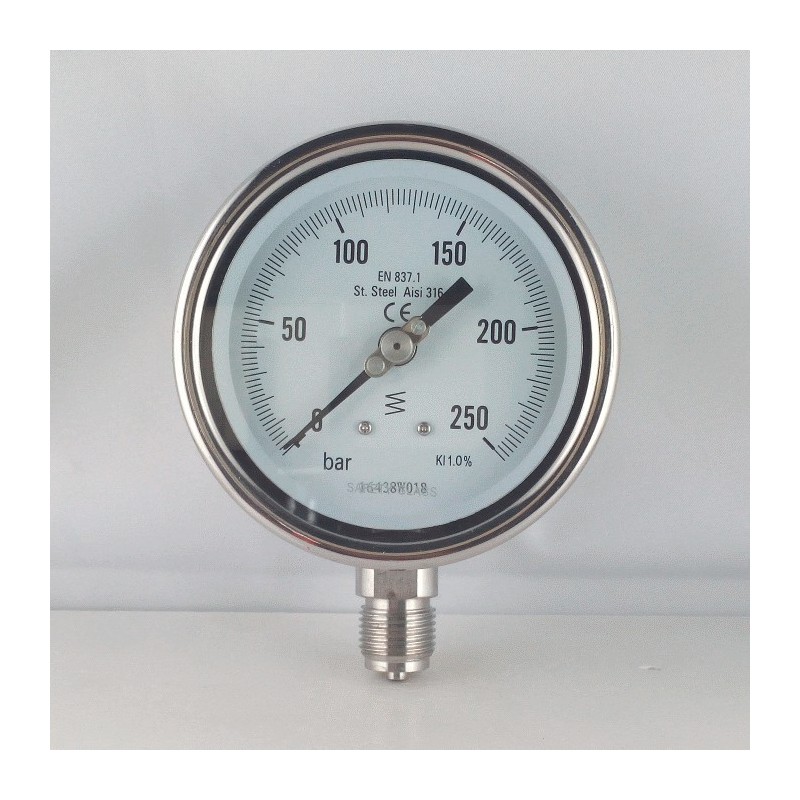

Stainless steel pressure gauge 250 Bar diameter dn 100mm bottom

New product

Dimensions: A=15mm B=48mm D=99mm D1=110mm H=88mm

More details

66,00 € tax incl.

Add to wishlist

Products questions

La tua domanda è stata inviata

  •     *Campi Richiesti

Caricando

Volume discounts

QuantityPriceYou Save
10 66,00 € Up to 33,00 €
30 66,00 € Up to 158,40 €
50 66,00 € Up to 495,00 €

Data sheet

Diameter100mm
Connection positionBottom Vertical
Range0/250

More info

Stainless steel pressure gauge dimeter 100mm range 0/250 Bar also available glycerine filled and wall flange(see options)
ALL STAINLESS STEEL pressure gauge made according UNI EN 837.1 norms - aisi 304 case IP67 - dial 80 - 100 - 150 mm. - blow out back cap. - SAFETY GLASS windows - Stainless steel aisi 316 movement and pivot - BOTTOM cilindrical (ISO 228) connection - Aluminium dial White background - Black BAR scale - Accuracy 1,0% - Micrometric adjustable aluminium index

Working Temperature: Room-Temp. -30 +65° C (-22 +149° F) - With Glycerine -10 +65° C (+14 +149° F)
Process -40 + 180° C (-40 +356° F) - With Glycerine 0 + 75°C (+32 +167° F)
Working Pressure: Steady 75% - Variable 60%
Overpressure 25% until 60 bar (870 psi) 15% over


If you wish a customized offer for large quantities or dials with your logo Contact us
